Control electrónico: Controladores para centrales frigoríficos
Controladores de capacidad
Controles de compresores para asegurar una presión de regulación de condensación y aspiración estable y precisa. • Ajuste de la presión de aspiración y condensación
• Monitorización de presión máx. y mín.
• Regulación preventiva para evitar que se produzca alarma en caso de picos o caídas de presión momentáneos
• Entrada secuencial ó cíclica (igualando horas de funcionamiento) de las etapas del compresor
• Entrada secuencial de las etapas del condensador
• Cambio manual de la referencia de la presión de aspiración
• Incremento nocturno de la presión de aspiración
• Conexión de un módulo de alarma externo AKC 22H con registros detallados y reenvío de alarmas
• Modo de servicio
• Monitorización entera de las funciones de seguridad del compresor
• Optimización de la presión de aspiración vía la función de cambio.

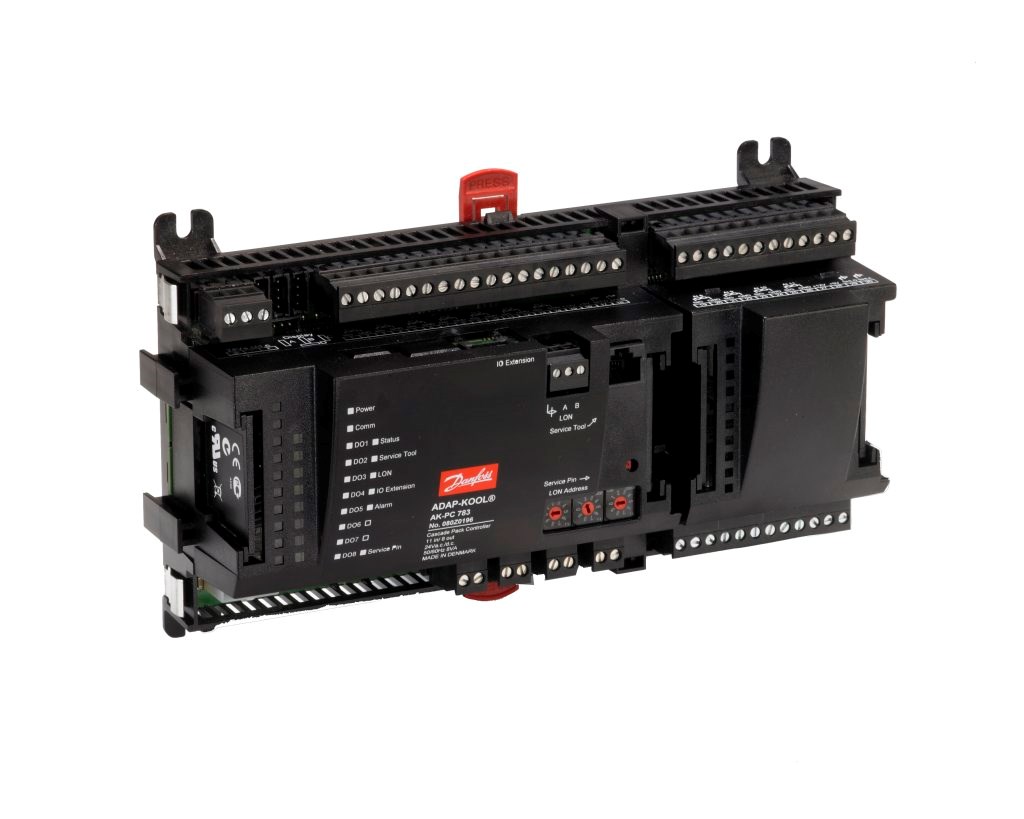

AK-PC 783 Capacity Controller with cascade control
AK-PC 783 is complete regulating units for capacity control of compressors and condensers in refrigeration plants with cascade function. The controller controls the high-pressure circuit, low-pressure circuit and cascade circuit. The controller is with oil management, simple heat recovery function and coordination between the high-pressure control and low-pressure control. In addition to capacity control the controllers can give signals to other controllers about the operating condition, e.g. forced closing of expansion valves, alarm signals and alarm messages. The controller’s main function is to control compressors and condensers so that operation all the time takes place at the energy-optimum pressure conditions. Both suction pressure and condensing pressure are controlled by signals from pressure transmitters.

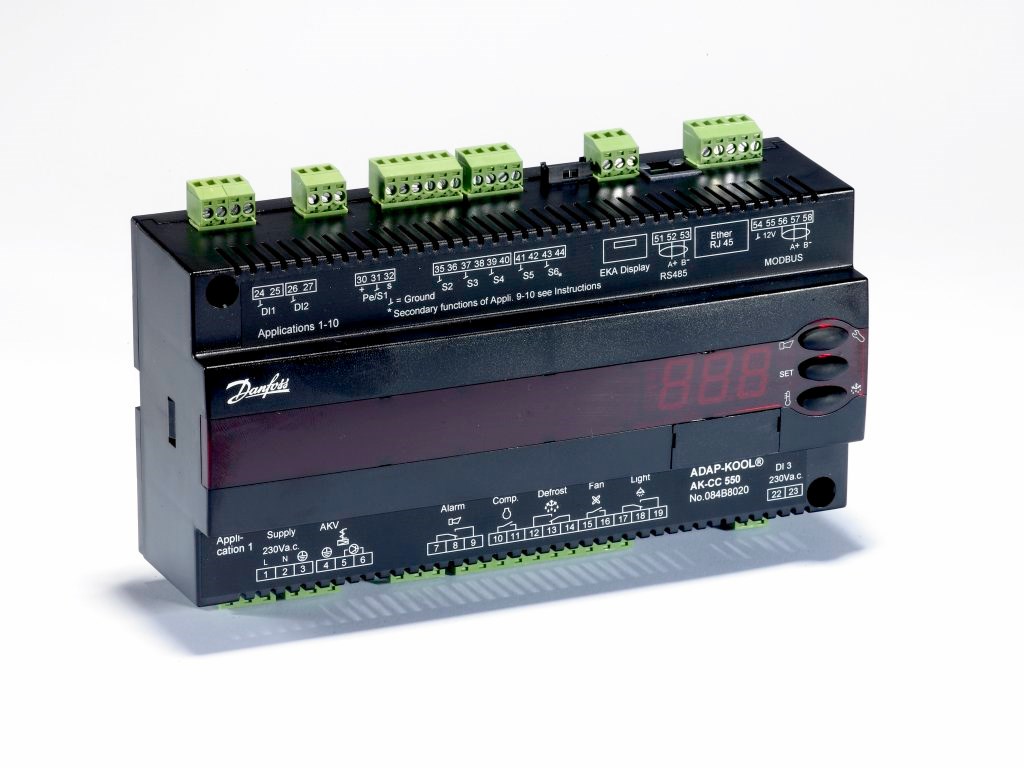

AK-CC 550, Control de evaporadores

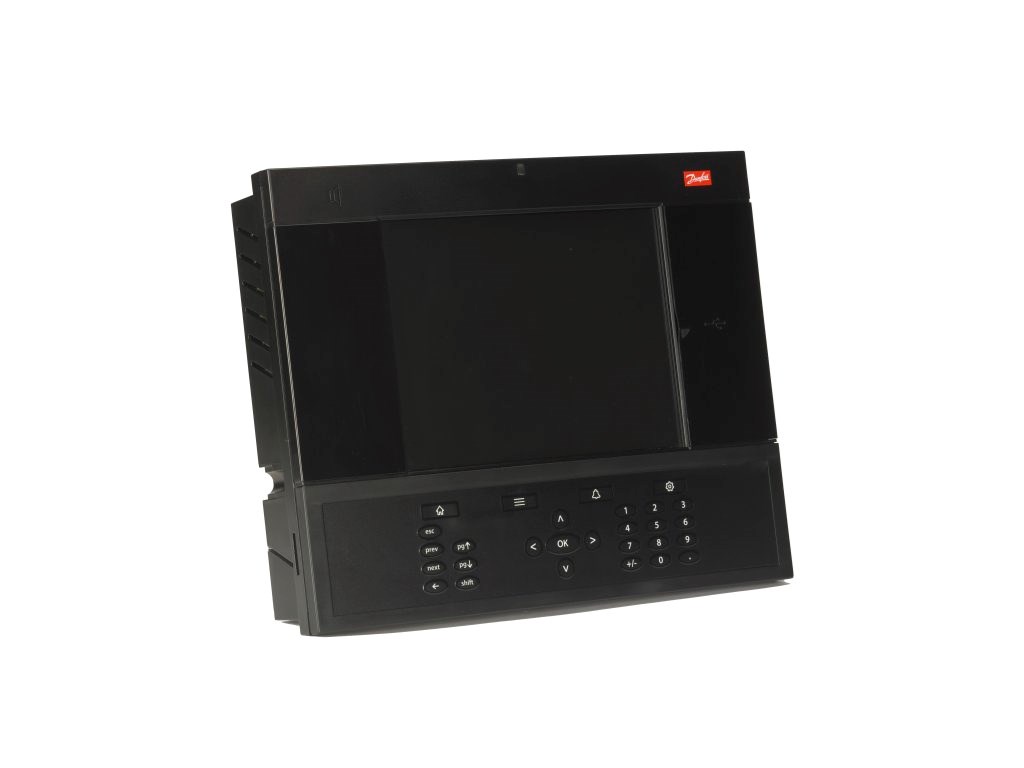

AK-SM 850, System Controller
The Danfoss AK-System Manager (AK-SM) is a modern solution for the food retail markets. The AK-SM uses the latest technology to provide the maximum benefit to the end user, both in terms of energy saving optimization, control options and user friendly access. Designed specifically with the food retail applications in mind, the AK-SM provides all the functionality and tools to provide full application ‘coverage’, for the Refrigeration control and monitoring application.
The Danfoss AK-SM represents the most flexible answer to today’s demands for balances cost, effective control, continuous energy optimization and long term flexibility via miscellaneous inputs and boolean logic commands, all built in to one easy to use front end controller.
